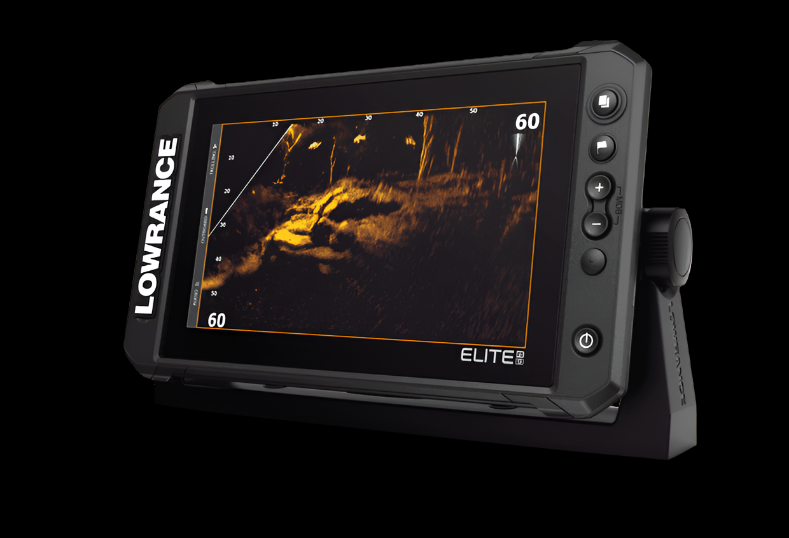

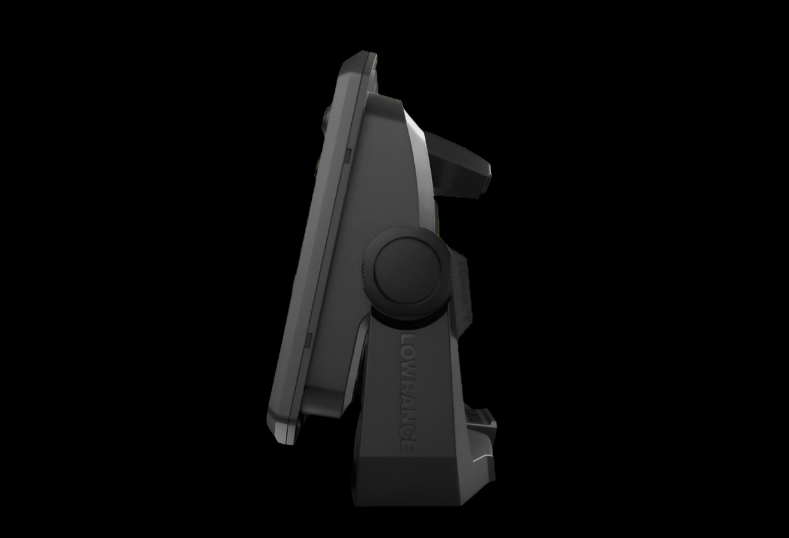

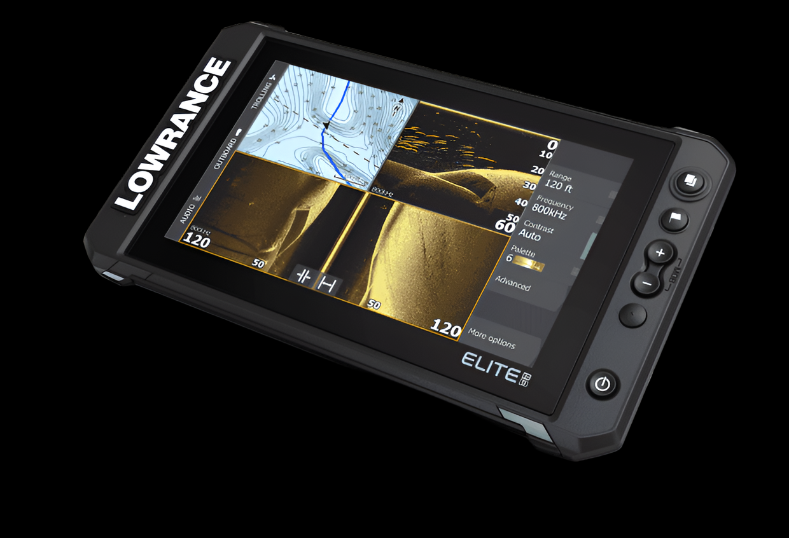

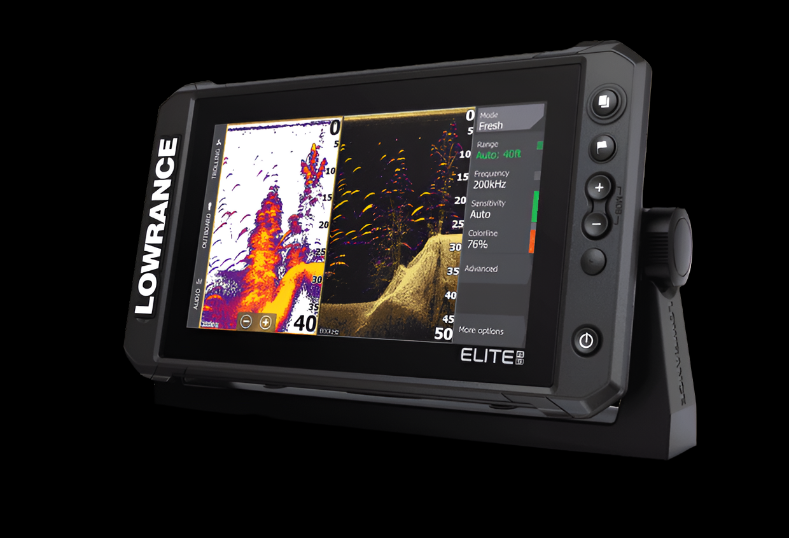

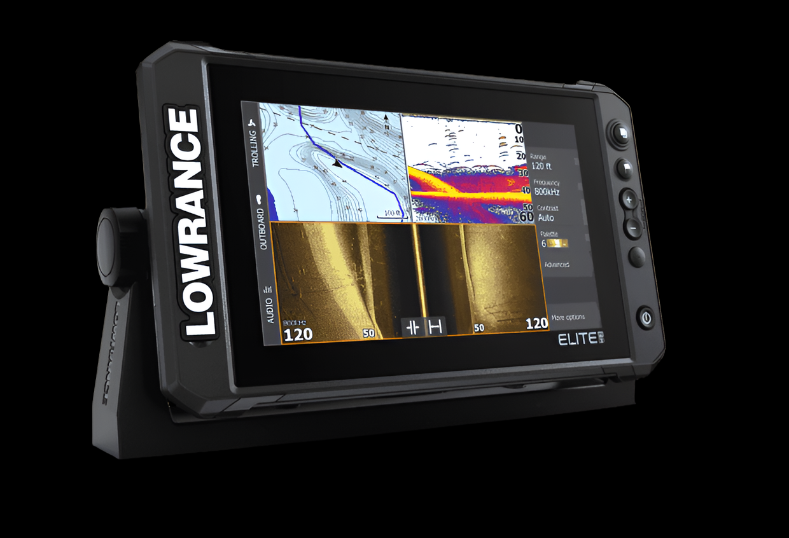

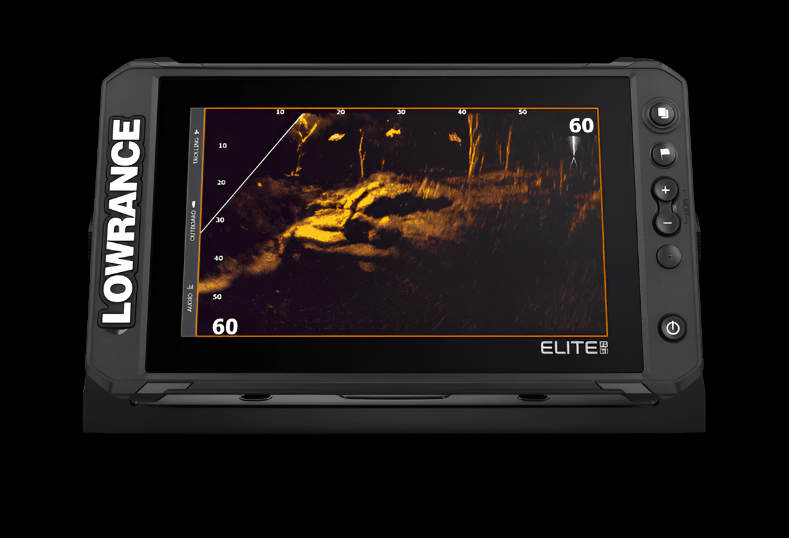

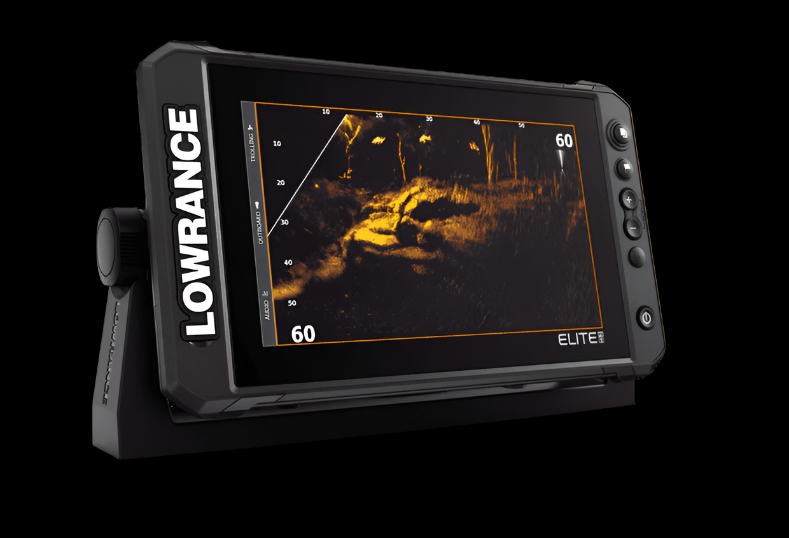

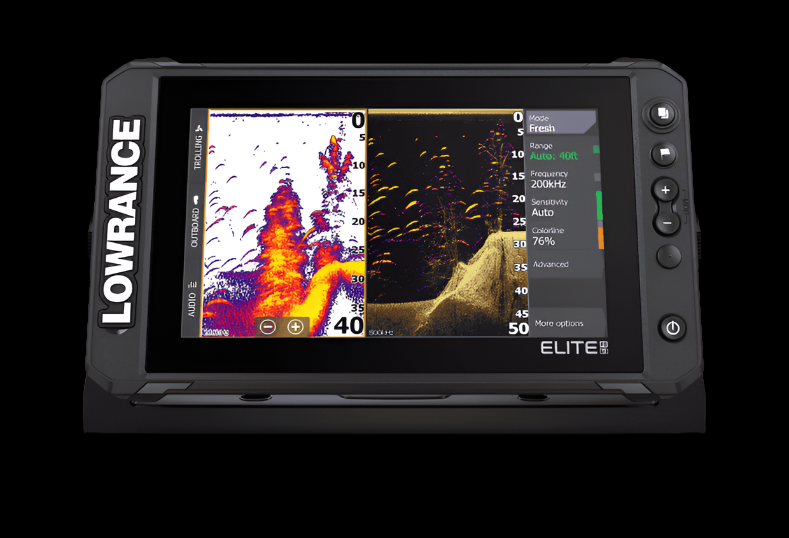

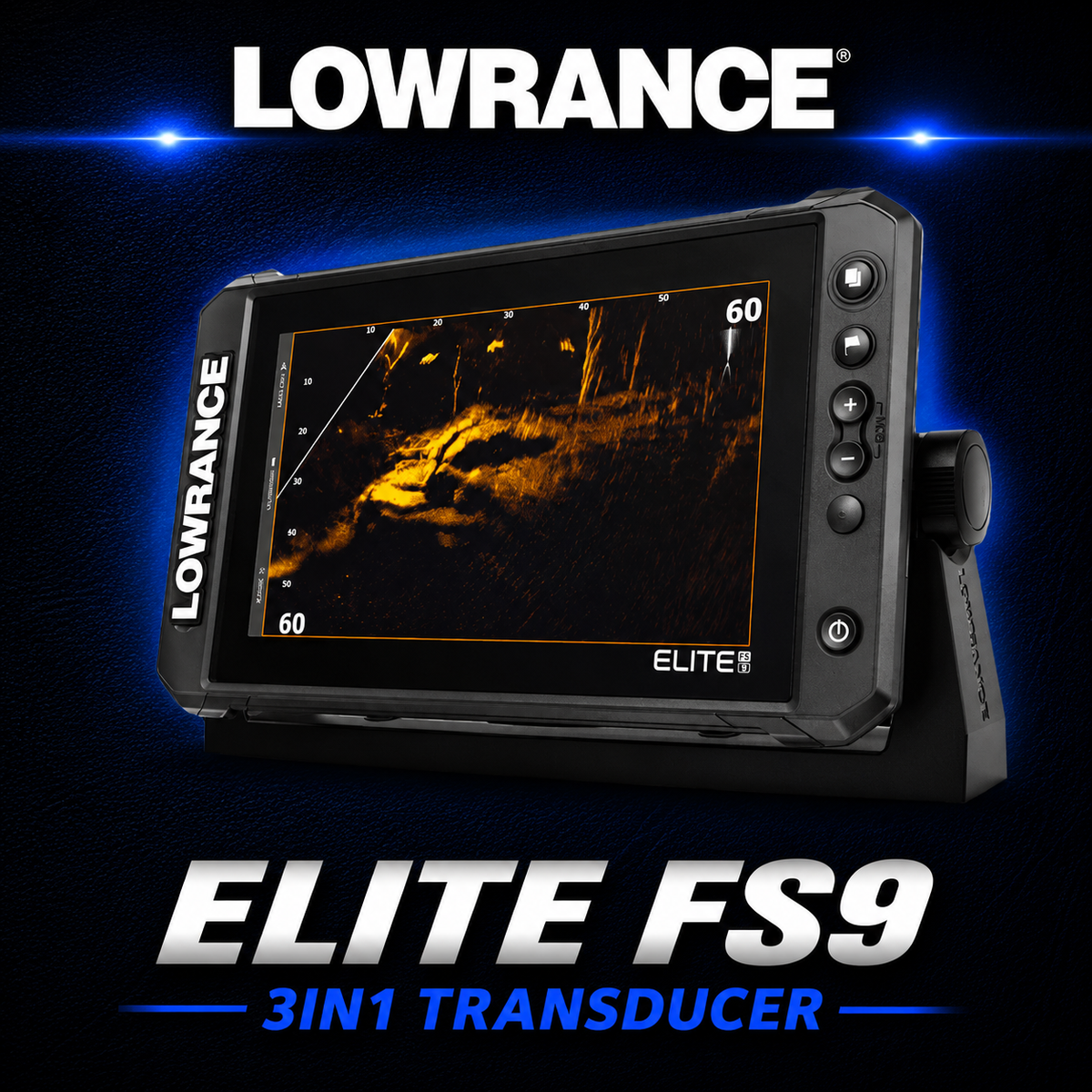

Lowrance Elite Fs 9" With Active Image 3 In 1 Transducer & Nz Chart

Lowrance Elite Fs 9" With Active Image 3 In 1 Transducer & Nz Chart

Regular price $1,899.00 NZD
Regular price $2,109.00 NZD Sale price $1,899.00 NZD
Sale Sold out

The new Elite™ Fishing System (FS) 9 provides access to the complete range of Lowrance fish finding tools, including ActiveTarget™ live sonar, Active Imaging™, FishReveal™, and preloaded C-MAP® Contour™ + charts, all at a more affordable price compared to other fishfinder/chart plotters in its category.

Key Features

  • ActiveTarget Live Sonar and Active Imaging Compatibility: Supports sonar accessories like ActiveTarget™ and Active Imaging™ 3-in-1 Sonar.
  • Full Networking Capability: Share sonar, charting, waypoints, and other user data between multiple displays.
  • High-Resolution Multi-Touch Screen: Preloaded with C-MAP Contour + charts (AMER, APAC).
  • NMEA 2000® Support: Control NMEA 2000® devices.
  • Halo Radar Compatibility: Operate Lowrance radar domes directly.
  • Total Control: Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor.

Sonar Specifications

  • Power Output: Max 1 kW RMS.
  • Sonar Connections: One connector for Active Imaging SideScan, DownScan, and CHIRP.
  • Active Imaging 3-in-1:
    • DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m.
    • SideScan Imaging at 455 kHz: Max 300 ft / 91 m to each side.
  • CHIRP Sonar:
    • High Range (160-240 kHz) / 200 kHz: 1000 ft / 305 m.
    • Medium Range (60-100 kHz) / 83 kHz: 1000 ft / 305 m.
    • Low Range (40-60 kHz) / 50 kHz: 3000 ft / 900 m.
  • Available Sonar Frequencies: Low/Mid/High CHIRP, 50/83/200 kHz Broadband, 455/800 kHz SideScan/DownScan imaging.
  • Depth and Shallow Alarms: Yes.
  • Temperature Readings: Yes.
  • Transducer Type: Single 9-pin connection; multiple transducer selections from Lowrance® and Airmar®.

Environmental Specifications

  • Operating Temperature Range: -15°C to +55°C (5°F to 131°F).
  • Storage Temperature: -20°C to +60°C (4°F to 140°F).
  • Waterproof Rating: IPX6 and IPX7.

Electrical Specifications

  • Supply Voltage: 12 V DC (10 - 17 V DC min - max).
  • Recommended Fuse Rating: 3 A.
  • Power Consumption (Maximum): 28 W (2 A at 13.8 V DC).

Display Specifications

  • Resolution: 800 x 480 pixels.
  • Viewing Angles: 50° top, 60° bottom, 70° left and right.
  • Brightness: > 1200 nits.
  • Touch Screen: Multitouch.

Physical Specifications

  • Weight (Display Only): 1.2 kg (2.7 lbs.).
  • Compass Safe Distance: 0.5 m (1.6 ft.).

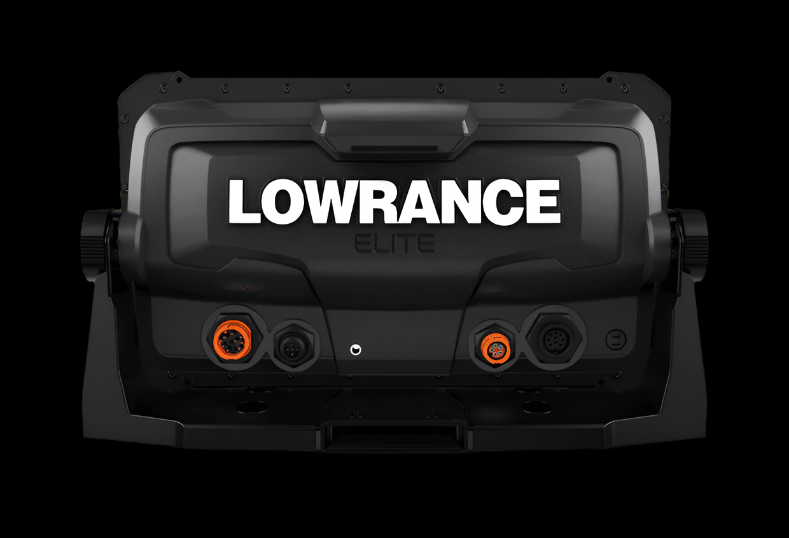

Interface/Connectivity

  • NMEA 2000®: 1 port (Micro-C connector).
  • Data Card Reader: 1x slot (microSD, SDXC).
  • Ethernet: 1 port (5-pin Ethernet connector, 100Base-T).
  • Sonar: 1 port (9-pin connector).
  • Wi-Fi Internal: 802.11b/g/n (no wireless networking between units).
  • Bluetooth®: 4.0 with support for Bluetooth® Classic.
  • GPS: 10Hz high-speed update WAAS, MSAS, EGNOS, GLONASS
