XSONIC AIRMAR TM185 M

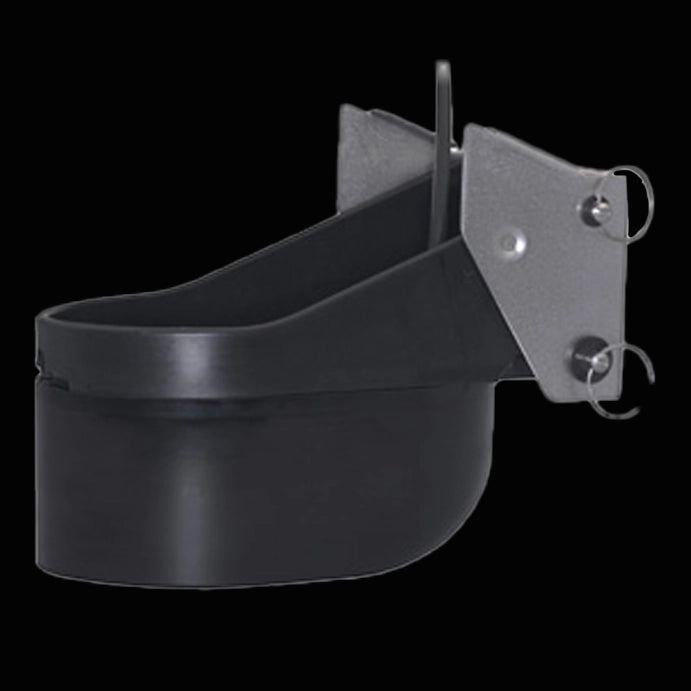

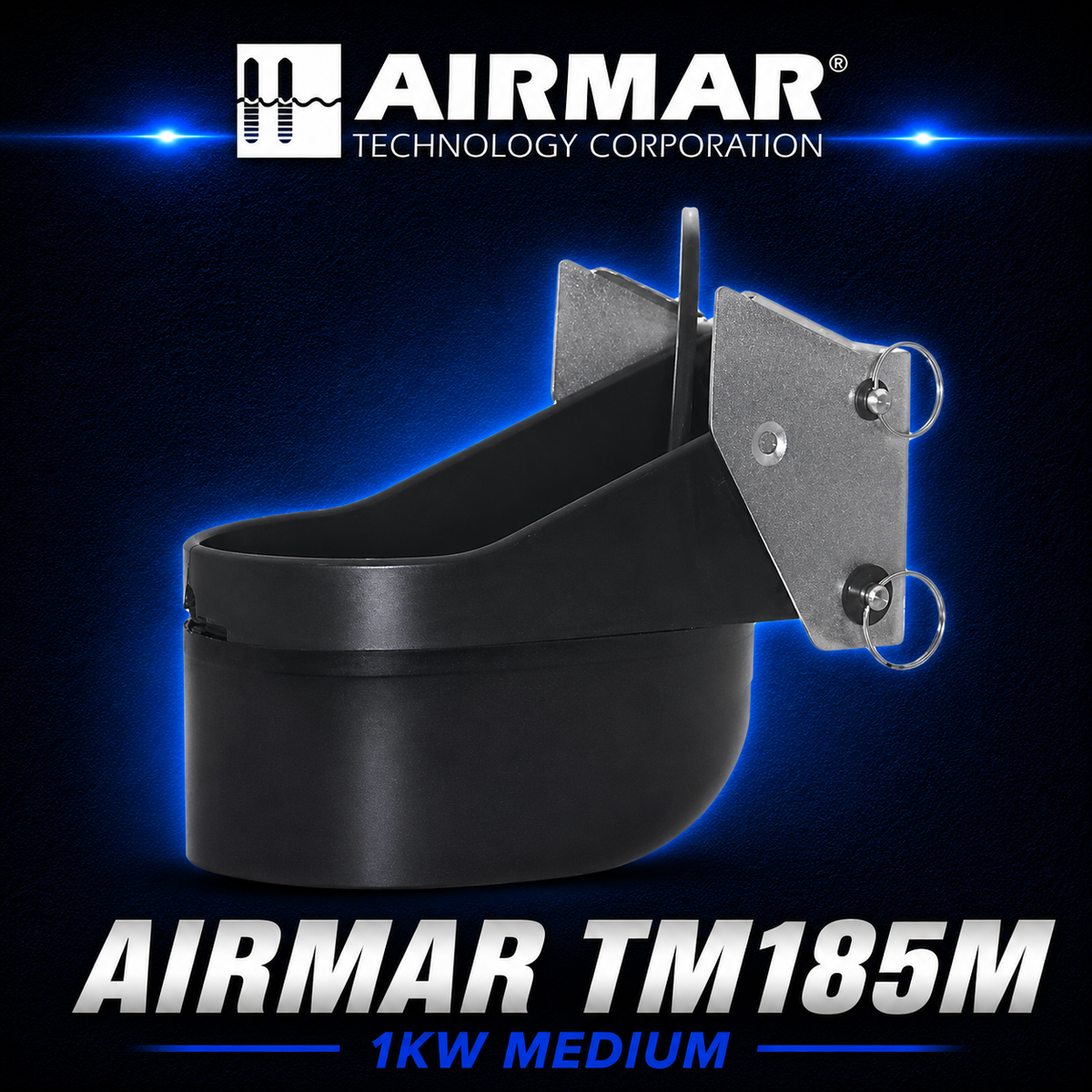

XSONIC Airmar TM185M – Precision CHIRP Sonar for Serious Anglers
Available at Warren Hay Marine, Whangarei

The XSONIC Airmar TM185M is a high-performance, transom-mount CHIRP transducer engineered for fishers who demand exceptional clarity and mid-depth accuracy. Ideal for targeting pelagics, bottom species, and bait schools, the TM185M offers consistent, highly detailed sonar returns across a medium CHIRP frequency range of 85–135 kHz, making it perfect for New Zealand’s coastal and offshore waters.

With a 1kW power rating and a beamwidth that adapts as you change frequency, this transducer delivers both tight target separation and wide-area scanning in depths up to 500–600 metres. Whether you’re chasing kingfish inshore or hunting hapuku in the deep, the TM185M gives you the detail to fish smarter.

Key Features & Specs:

• Frequency Range: 85–135 kHz (Medium CHIRP)

• Power Output: 1kW

• Beamwidth: Variable 16° to 11° depending on frequency

• Depth Capability: Up to 600m (approx.)

• Mount Type: Rugged transom-mount for easy installation

• Housing: Urethane with stainless steel bracket

• Temperature Sensor: Built-in for accurate water temp readings

• Connector: XSONIC 9-pin – compatible with Simrad & Lowrance displays

Ideal For:

• Offshore and coastal sportfishing

• Mid-depth water column scanning

• Precise bait and fish targeting with crisp sonar returns

Built for tough marine conditions and unmatched performance, the TM185M is the go-to transducer for Kiwi anglers chasing serious results.

Available now at Warren Hay Marine, Whangarei – your local marine electronics specialists.
