XSONIC_AIRMAR_TM275LH-W

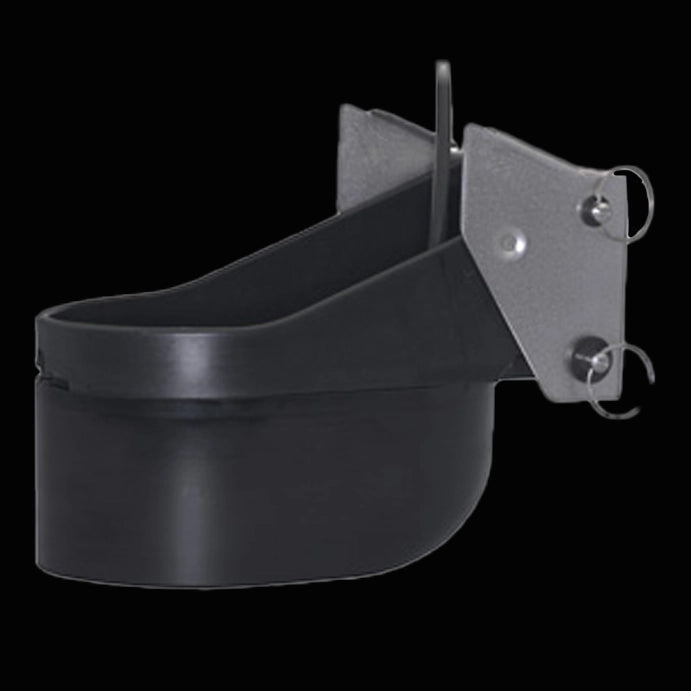

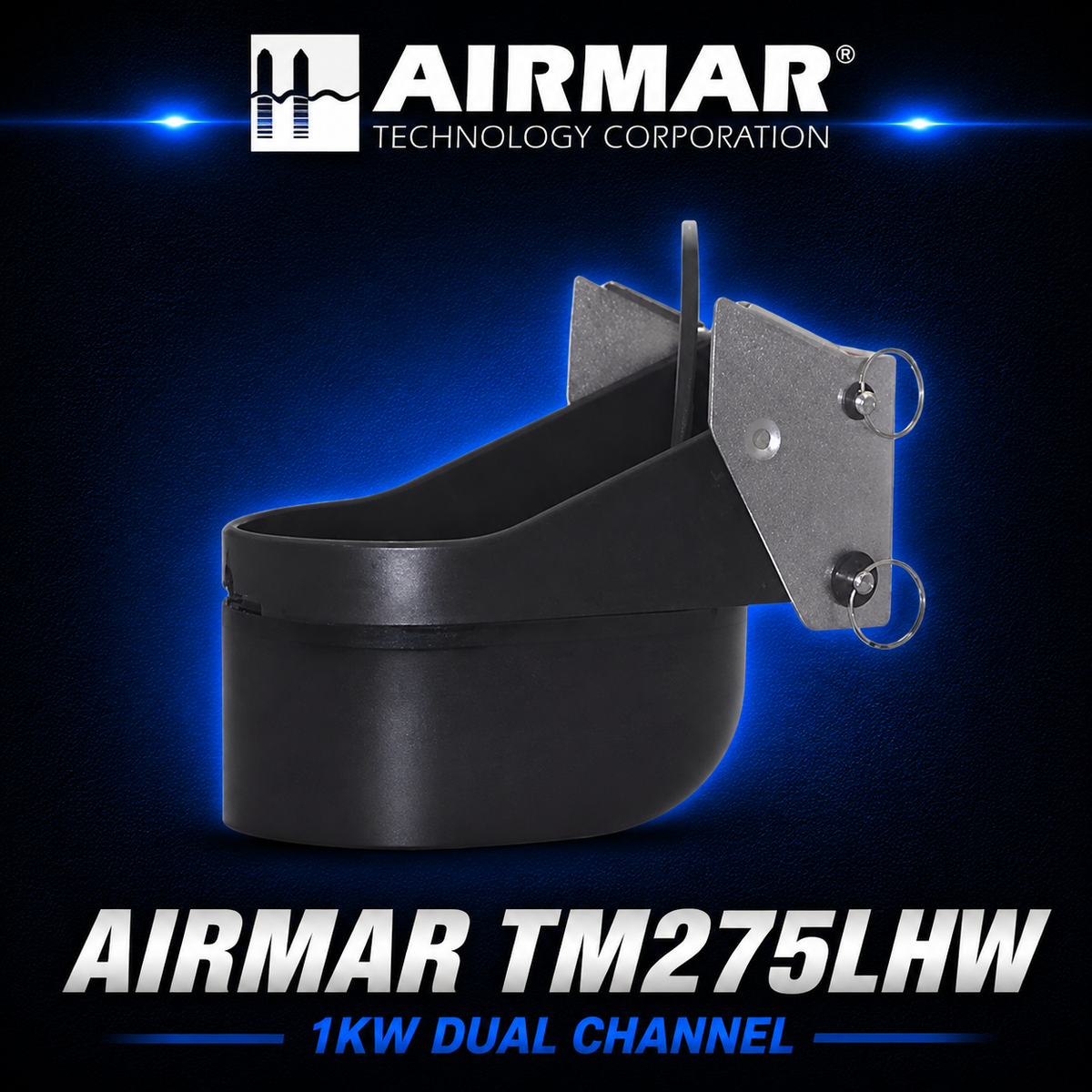

XSONIC Airmar TM275LH-W – High-Performance Transom Mount CHIRP Transducer
Available at Warren Hay Marine, Whangarei

Unlock exceptional sonar clarity from shallow water to extreme depths with the XSONIC Airmar TM275LH-W, a professional-grade transom-mount CHIRP transducer designed for serious offshore anglers. This dual-channel transducer delivers unmatched detail, wide-angle coverage, and precise target separation — ideal for identifying bait balls, tracking game fish, and scanning structure in both coastal and deep-sea environments.

The TM275LH-W combines Low CHIRP (42–65 kHz) for superior deep-water penetration and High Wide CHIRP (150–250 kHz) for crisp, wide-angle coverage in the shallows, giving you the best of both sonar worlds.

Key Features & Specs:

• CHIRP Range:
  – Low Frequency: 42–65 kHz for deep water scanning
  – High Wide Frequency: 150–250 kHz for wide-angle shallow water coverage

• Power: 1 kW per channel

• Beamwidth:
  – Low CHIRP: 25°–16°
  – High Wide CHIRP: Constant 25°

• Depth Capability: Up to 1,200m (low CHIRP), with crisp resolution at all depths

• Temperature Sensor: Integrated for real-time water temperature readings

• Mount Type: Transom-mount – rugged and easy to install

• Connector: XSONIC 9-pin (Simrad and Lowrance compatible)

Ideal For:

• Offshore game fishing

• Sport and commercial fishing vessels

• Fishers wanting high-resolution returns in both deep and shallow waters

Built to perform in tough marine environments, the TM275LH-W delivers the sonar power and versatility demanded by New Zealand anglers.

In stock now at Warren Hay Marine, Whangarei – your trusted source for premium Airmar and Simrad sonar solutions.
